NetworkX
NetworkX is a Python package that represents complex networks as graphs and allows for their manipulation.
Install the following libraries:
Below there are few useful examples to follow.
Parse graph, show it
Let's investigate relationships between worldwide political figures (support and opposition relations)!
We are given a graph in .jelly containing information about political stances extracted from news articles.
Let's dive in and get some useful information!
We can easily load it:
# Parse RDF from the Jelly format
rdf_g = Graph()
rdf_g.parse(example_file, format="jelly")
print(f"Loaded graph with {len(rdf_g)} instances.")
Output from print():
Convert it into a convenient NetworkX graph:
Is our graph fully connected? It's important to know (are all political relations tied together?), let's check here:
# Example calculation, get the number of connected components in a graph
num_components = nx.number_connected_components(nx_g)
print(f"Connected components: {num_components}")
Output from print():
Which nodes are connected the most (have most connections?), let's see top 5 of them:
# Example calculation, get top 5 objects with highest degrees, simple in NetworkX
top5 = sorted(nx_g.degree, key=lambda x: x[1], reverse=True)[:5]
print("Top 5 nodes sorted by degree:")
for node, deg in top5:
print(f"{node}: {deg}")
Output from print():
Top 5 nodes sorted by degree:
Socrates: 241
Cavaco: 189
Passos Coelho: 187
Costa: 179
Antonio Costa: 168
What is the shortest path between two nodes? We can check:
# Example calculation, shortest path between two nodes (provided at least two nodes)
source = next(n for n in nx_g if norm(n) == "socrates")
target = next(n for n in nx_g if norm(n) == "obama")
path = nx.shortest_path(nx_g, source=source, target=target)
print(f"Shortest path from {source} to {target}: {' -> '.join(path)}")
Output from print():
However, it's best to see the full picture (for our example we truncate to 10 nodes for clarity):
# Take first 10 nodes
nodes = list(nx_g)[:10]
subg = nx_g.subgraph(nodes)
# Draw and display the graph
pos_sub = nx.spring_layout(subg, k=5, iterations=200, scale=3, seed=24)
plt.figure(figsize=(10, 10))
# Introduce your own settings for display
nx.draw_networkx(subg, pos_sub, font_size=14, node_size=220, linewidths=0.7)
plt.axis("off")
plt.show()

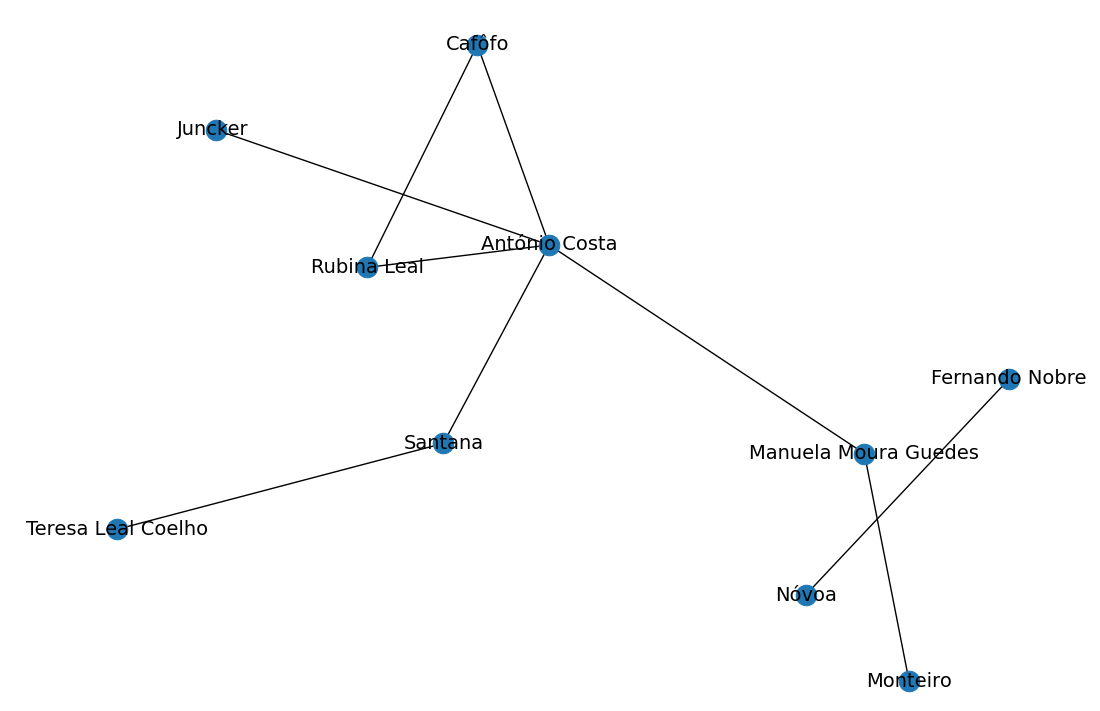

The graph presents as follows
In summary:
Entire example
import urllib.request, gzip, tempfile, shutil, os
import networkx as nx
import matplotlib.pyplot as plt
from rdflib import Graph, URIRef, BNode, Literal
from rdflib.extras.external_graph_libs import rdflib_to_networkx_graph
# Filter predicates for people
TARGET_PREDICATES = {
URIRef("http://www.politiquices.pt/ent2_str"),
URIRef("http://www.politiquices.pt/ent1_str"),
}
# URL to the dataset
url = "https://w3id.org/riverbench/datasets/politiquices/1.0.3/files/jelly_10K.jelly.gz"
# Load example jelly file
with urllib.request.urlopen(url) as r:
fd, example_file = tempfile.mkstemp(suffix=".jelly")
os.close(fd)
with gzip.GzipFile(fileobj=r) as g, open(example_file, "wb") as out:
shutil.copyfileobj(g, out)
# Parse RDF from the Jelly format
rdf_g = Graph()
rdf_g.parse(example_file, format="jelly")
print(f"Loaded graph with {len(rdf_g)} instances.")
# First step for filtering the graph
rdf_g_filtered = Graph()
for s, p, o in rdf_g.triples((None, None, None)):
if p in TARGET_PREDICATES:
rdf_g_filtered.add((s, p, o))
# Just filtering the graph for clarity of visualization, can be omitted
related = URIRef("http://www.politiquices.pt/related")
for b in list(rdf_g_filtered.subjects()):
if isinstance(b, BNode):
ent1 = ent2 = None
for p, o in rdf_g_filtered.predicate_objects(b):
if p == URIRef("http://www.politiquices.pt/ent1_str") and isinstance(
o, Literal
):
ent1 = o
elif p == URIRef("http://www.politiquices.pt/ent2_str") and isinstance(
o, Literal
):
ent2 = o
if ent1 and ent2:
rdf_g_filtered.add((ent1, related, ent2))
rdf_g_filtered.add((ent2, related, ent1))
for triple in list(rdf_g_filtered.triples((b, None, None))):
rdf_g_filtered.remove(triple)
# Convert to a NetworkX graph
nx_g = rdflib_to_networkx_graph(rdf_g_filtered)
# Example calculation, get the number of connected components in a graph
num_components = nx.number_connected_components(nx_g)
print(f"Connected components: {num_components}")
# Example calculation, get top 5 objects with highest degrees, simple in NetworkX
top5 = sorted(nx_g.degree, key=lambda x: x[1], reverse=True)[:5]
print("Top 5 nodes sorted by degree:")
for node, deg in top5:
print(f"{node}: {deg}")
# Helper function
norm = (
lambda n: str(n.value).strip().lower()
if isinstance(n, Literal)
else str(n).strip().lower()
)
# Example calculation, shortest path between two nodes (provided at least two nodes)
source = next(n for n in nx_g if norm(n) == "socrates")
target = next(n for n in nx_g if norm(n) == "obama")
path = nx.shortest_path(nx_g, source=source, target=target)
print(f"Shortest path from {source} to {target}: {' -> '.join(path)}")
# Take first 10 nodes
nodes = list(nx_g)[:10]
subg = nx_g.subgraph(nodes)
# Draw and display the graph
pos_sub = nx.spring_layout(subg, k=5, iterations=200, scale=3, seed=24)
plt.figure(figsize=(10, 10))
# Introduce your own settings for display
nx.draw_networkx(subg, pos_sub, font_size=14, node_size=220, linewidths=0.7)
plt.axis("off")
plt.show()
print("All done.")
We converted an RDFLib graph to NetworkX, calculated insightful metrics and visualized the graph.
For more info about the data source please see the Politiquices dataset in RiverBench and its original source (Portuguese).
Serialize NetworkX graph
This example shows how to write a NetworkX graph to a Jelly file.:
import networkx as nx
from rdflib import Graph, URIRef, Namespace
from rdflib.namespace import RDF
# An example NetworkX graph
nx_g = nx.Graph()
nx_g.add_node("http://example.org/A")
nx_g.add_node("http://example.org/B")
nx_g.add_edge("http://example.org/A", "http://example.org/B")
# We define RDFLib graph for further conversion
rdf_g = Graph()
# Example namespace
ex = Namespace("http://example.org/ns#")
# Add triples through node information in NetworkX graph
for node_uri, data in nx_g.nodes(data=True):
subj = URIRef(node_uri)
rdf_g.add((subj, RDF.type, ex.Node))
# Add triples through edge information in NetworkX graph
for u, v, attr in nx_g.edges(data=True):
rdf_g.add((URIRef(u), ex.connectedTo, URIRef(v)))
# Serialize graph into a .jelly file
rdf_g.serialize(destination="networkx_graph.jelly", format="jelly")
print("All done.")
Which converts the NetworkX graph into an RDFLib Graph instance and serializes it.
